BMW K1600 GTL EXCLUSIVE (10 photos)

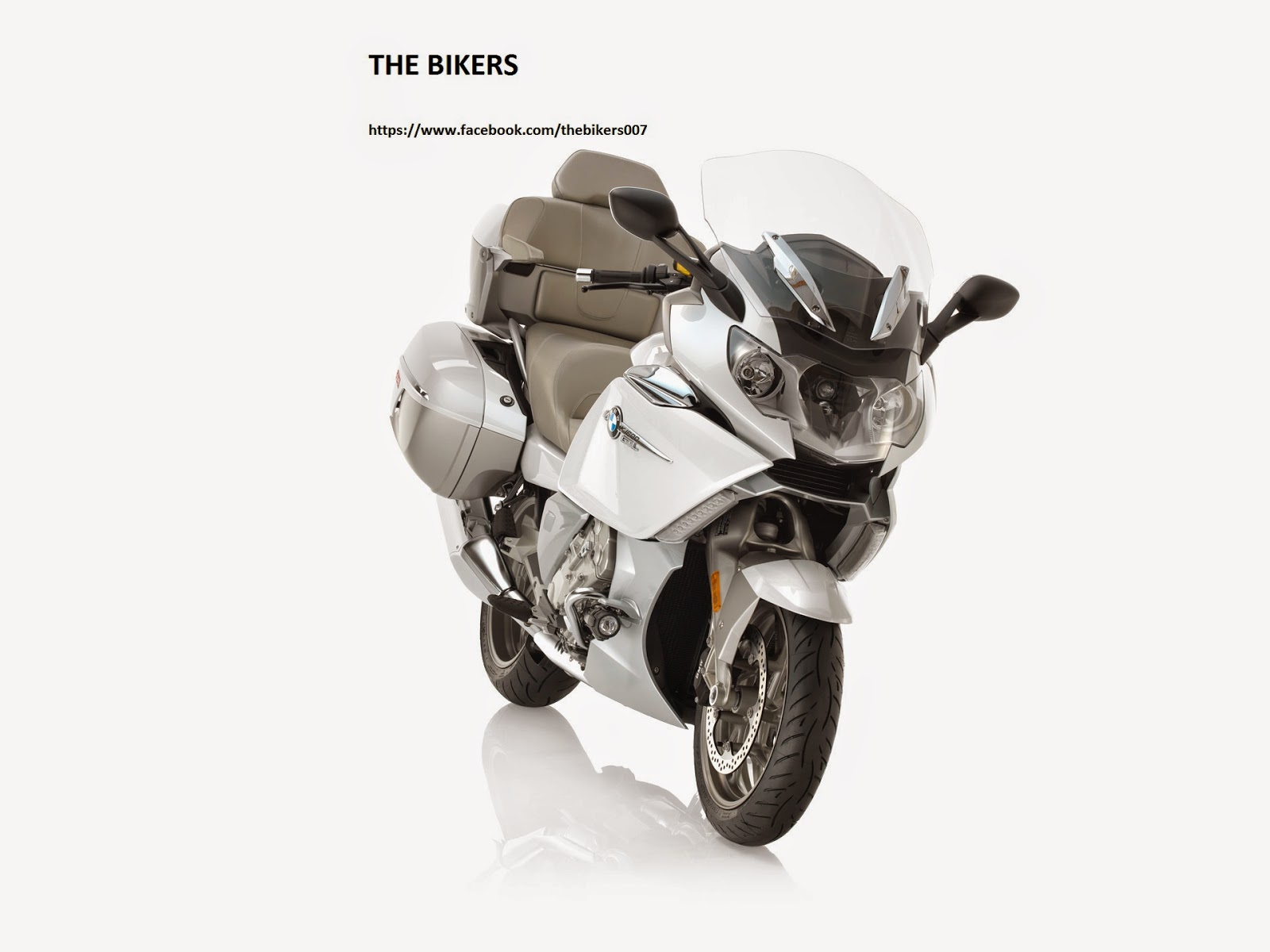

BMW K1600 GTL
When luxury is freed of all ballast, it moves to a new level. At the very top of this evolution is the new K 1600 GTL – a high-class touring bike like none before it. With the most compact and efficient in-line 6-cylinder engine ever installed in a series production motorcycle.
The ergonomics of the K 1600 GTL are designed for long trips and leave nothing to be desired for either rider or pillion passenger in terms of comfort. The slim design in the area of the rider's seat and the fact that the handlebars reach far back allows a relaxed seating position - for hours and over hundreds of miles. The pillion passenger enjoys a sizable seating area and a comfortable backrest.
Available for the first time in a motorcycle: the adaptive headlight (special equipment feature) - a revolution which matches the visionary front section of the K 1600 GTL and provides the very highest level of active safety.
The GTL makes luxury light-footed. This is because its unique chassis provides excellent handling. With a totally direct ride feel due to the ground-breaking Duolever front suspension. At the rear, it is the Paralever that put's the power of the engine onto the road, The optional ESA II (Electronic Suspension Adjustment) ensures that the GTL always glides completely smoothly since the systems allows the damping and suspension to be adapted according to situation and preference at the press of a button.
Every detail is designed for maximum riding pleasure. A motorcycle for people who are looking for a new kind of supremacy.
The K 1600 GTL. UNSTOPPABLE TOUR.
Engine
Type Oil-/water cooled 4-stroke in-line 6-cylinder engine, two overhead camshafts, four valves per cylinder
Bore x stroke 72 mm x 67.5 mm
Capacity 1,649 cc
Rated output 160 hp (118 kW) at 7,750 rpm
Max. torque 129 lb/ft (175 Nm) at 5,250 rpm
Compression ratio 12.2 : 1
Mixture control / engine management Electronic intake pipe injection, digital engine management (BMS-X)
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed Over 125 mph (200 km/h)
Fuel consumption per 100 km at constant 90 km/h 51 mpg, at a constant 55 mph.
Fuel consumption per 100 km at constant 120 km/h
Fuel type Premium Unleaded
Electrical system
Alternator three-phase alternator 580 W
Battery 12 V / 19 Ah, maintenance-free
Power transmission
Clutch Multiple-disc clutch in oil bath
Gearbox 6-speed, helical, gearbox
Drive Shaft
Chassis / brakes
Frame Bridge-type frame, cast aluminum, load-bearing engine
Front wheel location / suspension BMW Motorrad Duolever; central spring strut
Rear wheel location / suspension BMW Motorrad Paralever
Suspension travel front / rear 4.9/5.3 inches (125mm /135 mm)
Wheelbase 66.7 inches (1,680 mm)
Castor 4.3 inches (108.4 mm)
Steering head angle 62.2°
Wheels Cast aluminum wheels
Rim, front 3.50 x 17 inches
Rim, rear 6.00 x 17 inches
Tyres, front 120/70 ZR 17
Tyres, rear 190/55 ZR 17
Brake, front Dual disc brake, diameter 320 mm, 4-piston fixed calipers
Brake, rear Single disc brake, diameter 320 mm, double-piston caliper
ABS STANDARD (part integral)
Dimensions / weights
Length 98.0 inches (2,489mm)
Width (incl. mirrors) 39.4 inches (1,000 mm)
Height (excl. mirrors) 57.5 inches (1,465 mm)
Seat height, unladen weight 29.5 inches Standard; variable seat heights available between 29.5 inches and 32.7 inches (available as accessories and/or factory options, see an authorized BMW Motorrad dealer)
Inner leg curve, unladen weight 67.7 inches Standard; variable inner leg curve (inseam) between 67.7 and 73.6 inches (seats available as accessories and/or factory options, see an authorized BMW Motorrad dealer)
Unladen weight, road ready, fully fuelled 1) 767 lbs (348 kg)
Dry weight 2) 708 lbs (321 kg)
Permitted total weight 1,235 lbs (560 kg)
Payload (with standard equipment) 467 lbs (212 kg)
Usable tank volume 7 gallons
When luxury is freed of all ballast, it moves to a new level. At the very top of this evolution is the new K 1600 GTL – a high-class touring bike like none before it. With the most compact and efficient in-line 6-cylinder engine ever installed in a series production motorcycle.
The ergonomics of the K 1600 GTL are designed for long trips and leave nothing to be desired for either rider or pillion passenger in terms of comfort. The slim design in the area of the rider's seat and the fact that the handlebars reach far back allows a relaxed seating position - for hours and over hundreds of miles. The pillion passenger enjoys a sizable seating area and a comfortable backrest.
Available for the first time in a motorcycle: the adaptive headlight (special equipment feature) - a revolution which matches the visionary front section of the K 1600 GTL and provides the very highest level of active safety.
The GTL makes luxury light-footed. This is because its unique chassis provides excellent handling. With a totally direct ride feel due to the ground-breaking Duolever front suspension. At the rear, it is the Paralever that put's the power of the engine onto the road, The optional ESA II (Electronic Suspension Adjustment) ensures that the GTL always glides completely smoothly since the systems allows the damping and suspension to be adapted according to situation and preference at the press of a button.
Every detail is designed for maximum riding pleasure. A motorcycle for people who are looking for a new kind of supremacy.
The K 1600 GTL. UNSTOPPABLE TOUR.
Engine
Type Oil-/water cooled 4-stroke in-line 6-cylinder engine, two overhead camshafts, four valves per cylinder
Bore x stroke 72 mm x 67.5 mm
Capacity 1,649 cc
Rated output 160 hp (118 kW) at 7,750 rpm
Max. torque 129 lb/ft (175 Nm) at 5,250 rpm
Compression ratio 12.2 : 1
Mixture control / engine management Electronic intake pipe injection, digital engine management (BMS-X)
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed Over 125 mph (200 km/h)
Fuel consumption per 100 km at constant 90 km/h 51 mpg, at a constant 55 mph.
Fuel consumption per 100 km at constant 120 km/h
Fuel type Premium Unleaded
Electrical system
Alternator three-phase alternator 580 W
Battery 12 V / 19 Ah, maintenance-free
Power transmission
Clutch Multiple-disc clutch in oil bath
Gearbox 6-speed, helical, gearbox
Drive Shaft
Chassis / brakes
Frame Bridge-type frame, cast aluminum, load-bearing engine
Front wheel location / suspension BMW Motorrad Duolever; central spring strut
Rear wheel location / suspension BMW Motorrad Paralever
Suspension travel front / rear 4.9/5.3 inches (125mm /135 mm)
Wheelbase 66.7 inches (1,680 mm)
Castor 4.3 inches (108.4 mm)
Steering head angle 62.2°
Wheels Cast aluminum wheels
Rim, front 3.50 x 17 inches
Rim, rear 6.00 x 17 inches
Tyres, front 120/70 ZR 17
Tyres, rear 190/55 ZR 17
Brake, front Dual disc brake, diameter 320 mm, 4-piston fixed calipers
Brake, rear Single disc brake, diameter 320 mm, double-piston caliper
ABS STANDARD (part integral)
Dimensions / weights
Length 98.0 inches (2,489mm)
Width (incl. mirrors) 39.4 inches (1,000 mm)
Height (excl. mirrors) 57.5 inches (1,465 mm)
Seat height, unladen weight 29.5 inches Standard; variable seat heights available between 29.5 inches and 32.7 inches (available as accessories and/or factory options, see an authorized BMW Motorrad dealer)
Inner leg curve, unladen weight 67.7 inches Standard; variable inner leg curve (inseam) between 67.7 and 73.6 inches (seats available as accessories and/or factory options, see an authorized BMW Motorrad dealer)
Unladen weight, road ready, fully fuelled 1) 767 lbs (348 kg)
Dry weight 2) 708 lbs (321 kg)
Permitted total weight 1,235 lbs (560 kg)
Payload (with standard equipment) 467 lbs (212 kg)
Usable tank volume 7 gallons
Reserve Approx. 1 gallon
